- Size: 8
- Place of Origin: qingdao
- Brand Name: kaiwei
- Model Number: 926
- Weight: 4500.000 kg

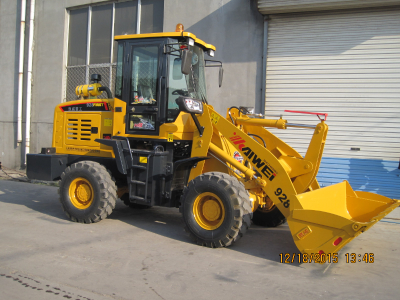

Specifications of ZL18F high wheel loader High quality CE wheel loader ZL18
Specification | overall weight(kg) | 4400 |
L×W×H(mm) | 5600x1770x2660 | |
rated bucket capacity(m3) | 0.9 | |
Rated load(kg) | 1800 | |
Maximum dump height (mm) | 3500 | |
Bucket indicator | Yes | |
Max. breakout force(KN) | 43 | |
Engine | Model | weichai4102,xichai4100or cummins engine |
Type | In line,direct injection,four-stroke,liquid cooled | |
Rated power(kw) |
47kw | |
Rated speed(r/min) | 2200 | |
Transmission system | Model of torque converter | YJ240 |
Type | Single-stage,Single-phase,3 elements | |
Gearbox type | Axial full power shift transmission | |
Gear shift | 2 gears ahead,2 gear astern | |
Hydraulic system | Distribution of work valve | ZL15.2 |
Working pump | CBG1032A | |
Steering system | Type | Articulated hydraulic steering |
Max. turning angle | lift and right 36±1° | |
Min turning radius(mm) | 4200 | |
Brake system | Brake type | Air assisted oil disc on four wheel |
Tyres | Standard tyres | 20.5-16 |
|
|
