Product Details
- Size: 10
- Place of Origin: china
- Brand Name: kaiwei
- Model Number: 930
- Weight: 5600.000 kg

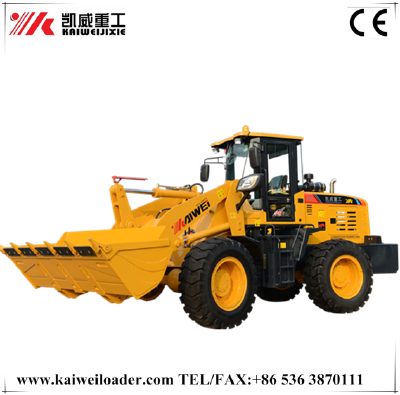

932 wheel loader
| Specification | 1.overall weight(kg) | 7000 |
| 2.L×W×H( mm ) | 6500*2400*2900 | |
| 3.Rated bucket capacity(m3) | 1.5 | |
| 4.Rated load(kg) | 3000KG | |
| 5.dump height (mm) | 3500 | |
| 6.Bucket indicator | YES | |
| Engine | 7.Brand and modle | weichai huangfeng6105,xichai6105,weichai DETUZ |
| 8.Type | Four strokes, Water cooling, Inline, injecting combustion chamber | |
| 9.Rated power( kw ) | 100 | |
| 10.Rated speed(r/min) | 2400 | |
| Transmission systeme | 11.Model of torque converter | JZL280 |
| 12.Type | single-phase single-stage radial-inward turbine triplex | |
| 13.Gearbox type | Fixed-spindle power shift | |
| 14.Gear shift | 2 gears ahead,2 gear astern | |
| Hydraulic system | 15.Working pressure(Mpa) | 20 |
| 16.Capacity of tank(L) | 100 L | |
| Steering system | 17.Type | Articulated hydraulic steering |
| 18.Max. turning angle | 35°±1 | |
| 19.Min turning radius(mm) | 4500 | |
| Brake system | 20.Brake type | Oil brake Four wheel disc brake |
| Tire | 21.Standard tire | 16-70-24 |
